Shakespeare
Shakespeare 5250AIS 36in S/S VHF Skinny Mini
MPN: 5250-AIS
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$114.99
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide
Description

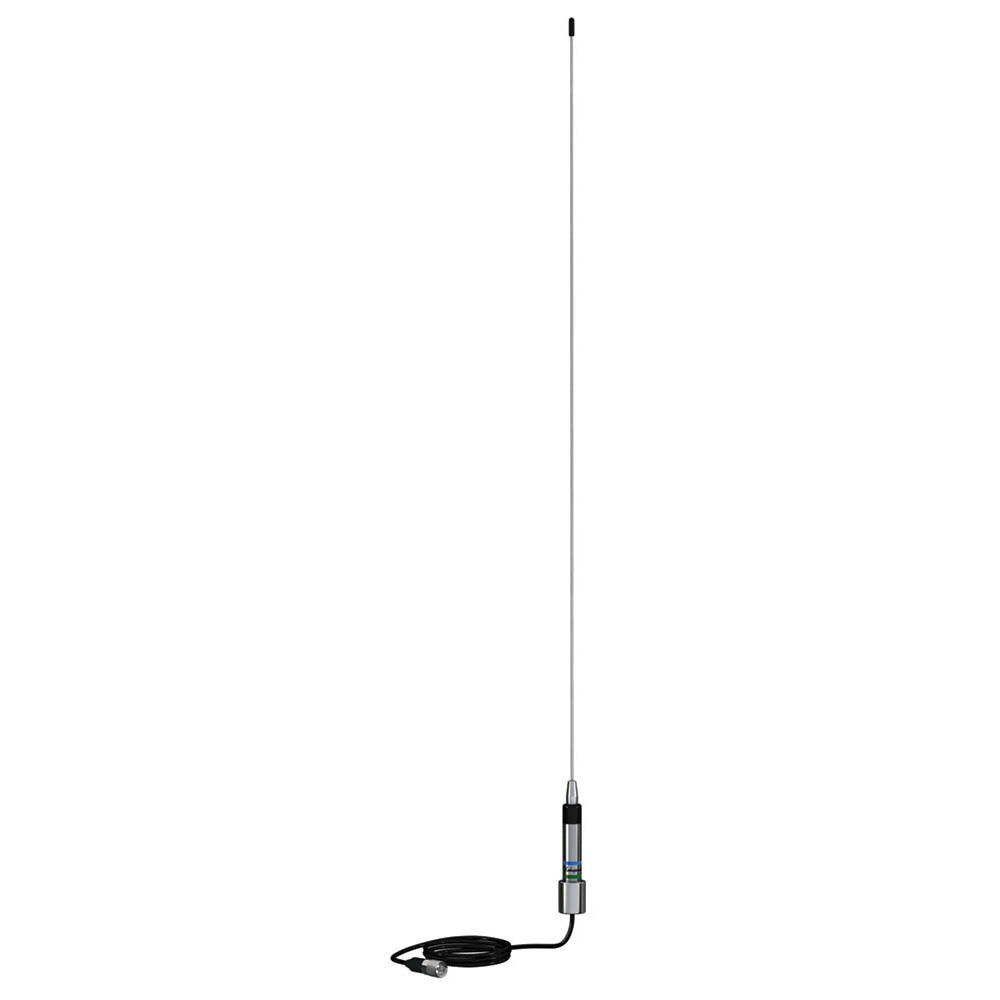

Shakespeare Style 5250-AIS Skinny Mini
3 ft. (0.91 M) VHF Marine Band 3dB
End-fed 1⁄2-wave stainless steel whip
Designed to meet the broader bandwidth requirements of all popular AIS transceivers, this antenna mounts with ease. Its compact size will be welcome aboard any vessel. Chrome plated brass canister minimizes the de-tuning associated with antennas having plastic canisters.
- Built for AIS transceivers
- Sealed, tin-plated copper wire coil
- Stainless steel whip (36 in)
- Requires mount with center hole for passage of the supplied 15 feet RG-58 cable.
- Suggested mount: Style 4187, 5187, 4188-S or 4190 Ratchet Mount (each sold separately)
- PL-259 connector included
- One section
Suggested mount(s): 4187 4188-S
| Shakespeare 5250-AIS Skinny Mini Specifications | |
| Band: | VHF Marine Band |
| Antenna Gain: | 3dB |
| Max. Input Power: | 50 watts |
| SWR: | nominally 1.5:1 at 156.8 MHz |
| Bandwidth: | VSWR of <1.5:1 at 162 MHz |
| Coax Supplied: | 15 ft of RG-58 |
| Connector Supplied: | PL-259 |
| Polarity: | Vertical |
| Impedance: | 50 Ohms |
| DC Ground: | No DC Ground - The antenna will read open on continuity test. |
|
Shakespeare Limited Warranty: |
2 years |
