Raymarine

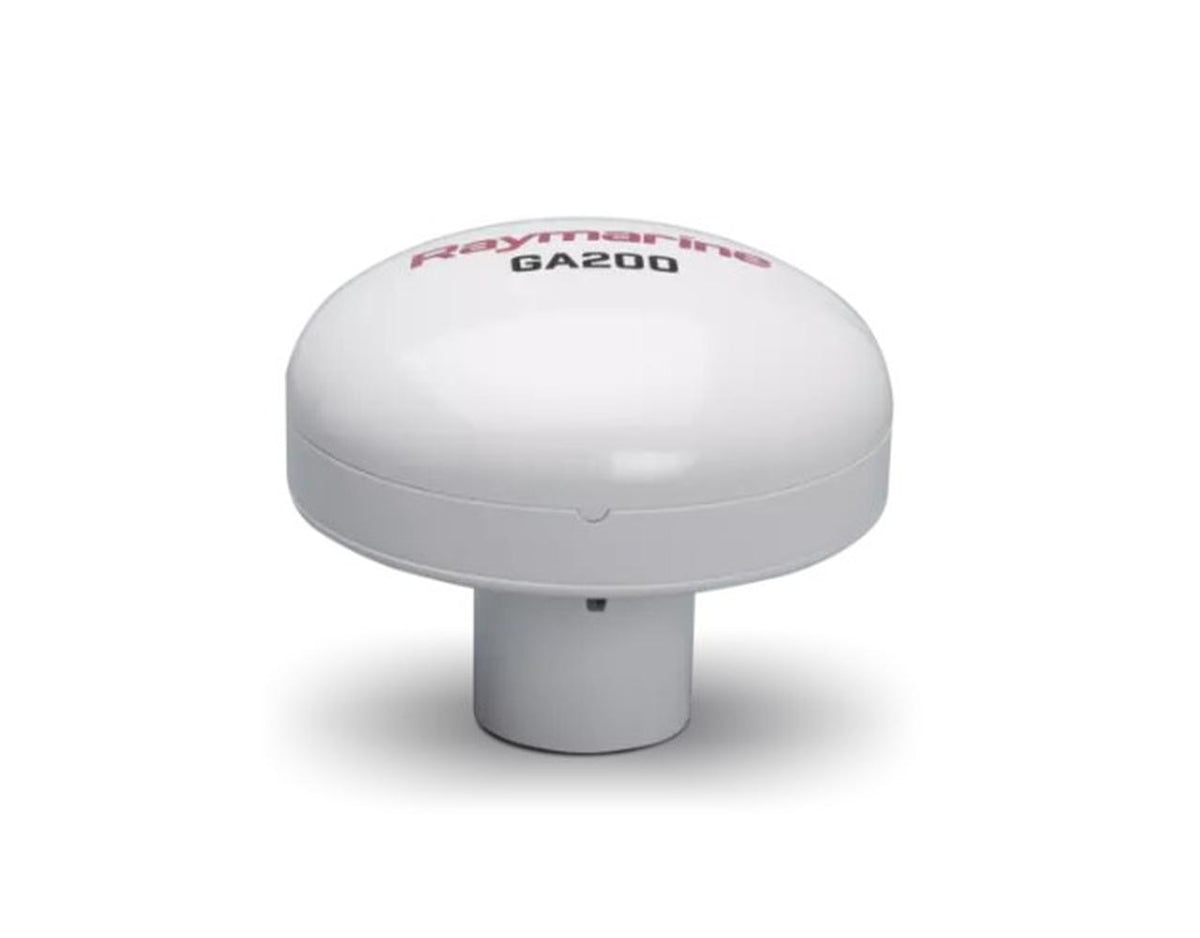

Raymarine GA200 GPS Antenna

MPN: A80589
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$174.99
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide

Description

Raymarine GA200 GPS Antenna For AIS4000/5000

Model: A80589
  • 10 m (33 ft.) fitted cable
  • Low power consumption
  • Surface or pole mountable

The GA200 is an external antenna, suitable for improving the reception of the internal GPS/GNSS receivers of compatible Raymarine chartplotters, AIS devices, and VHF radios.

Compatible Chartplotters and multifunction displays: Axiom Pro/Axiom 2 Pro Axiom XL eS97/eS98/eS127/eS128 a95/a97/a98/a125/a127/a128

Compatible AIS Receivers: AIS5000 AIS4000 AIS700 AIS350/AIS650

Compatible VHF radios: Ray90/Ray91 Ray63/Ray73 Ray53

Specifications
Diameter
85 mm (3.35 in)
Height (including pole mount adaptor) 70 mm (2.76 in)
Height 34 mm (1.34 in)
Unboxed weight (including cable) 0.5 Kg (1.1 lbs)
ENVIRONMENTAL
Waterproof rating IPx6, IPx7
Storage temperature range -30 degC to +70 degC (-22 degF to +158 degF)
Operating temperature range 0 degC to +55 degC (+32 degF to +131 degF)
Relative humidity 0.95

What's in the Box:
  • GNSS antenna, with captive cable 10m (33 ft).
  • Antenna pole mount adaptor
  • Antenna gasket
  • Antenna fixings (3 x M3x40 stud and thumb nut)
