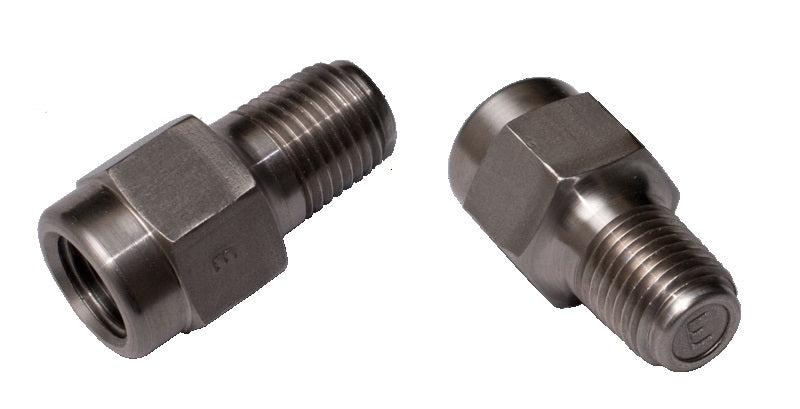

Maretron Pressure Snubber

MPN: PT-SNUB-01

Condition: Brand New

✓

In StockShips Today if Ordered by 2 PM

$75.00

Free UPS GROUND on $100+ orders

30-Day Returns Policy

Authorized Dealer

We Ship Worldwide

Description

The Maretron PT-SNUB-01 Pressure Snubber is used in combination with the Maretron FPM100 Fluid Pressure Monitor and a pressure transducer FPM100 accessory. The PT-SNUB-01 dampens pressure variations between a pressure source and the pressure transducer, both smoothing the changes due to pressure spikes and surges and protecting the pressure transducer from these changes. Please follow these instructions to install the PT-SNUB-01 Pressure Snubber between a Maretron FPM100 pressure transducer accessory and a tank or pressure source being monitored.

Pressure Snubber Specifications Specification	Value
Housing Material	303 Stainless Steel
Filter Disc	316 Stainless Steel
Max Pressure Rating	15,000 PSI (1,034 bar)
Max Pore Opening	0.0025 in
Flow at 1 PSI (69 mbar) Differential Pressure	3.0 ft<font FACE="Arial,Arial" SIZE="1 in>3/hr (0.085m/hr)
