1 / 1
Lumishore

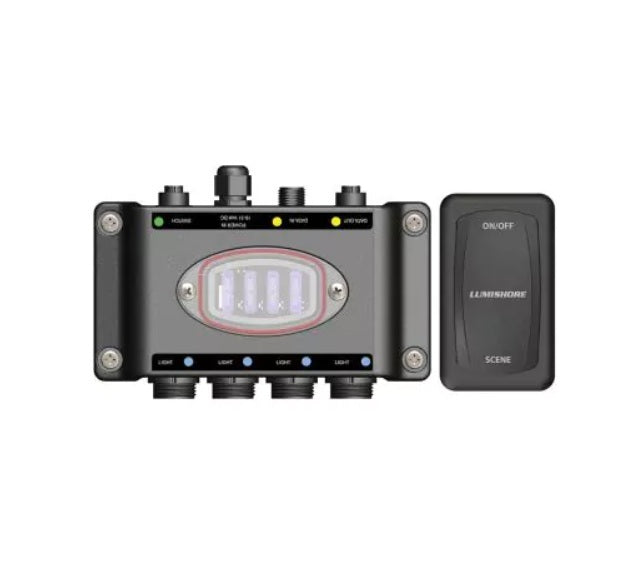

Lumishore SUPRA THX/TIX i-Connect Install Kit

MPN: 010-04358-00
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$329.99
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide

Description

Lumishore SUPRA THX/TIX i-Connect Install Kit

Model: 010-04358-00
  • Full control via certified MFD or EOS-LUX-SUPRA Display
  • Specially Designed for Ease of Installation
  • Plug and Play Connections
  • IP68 Field Installable Connectors (supplied)
  • Built-in Switching Power Relay
  • Replaceable Blade Fuse For Each Light
  • Status Indication LED for Each Light
  • Built-In Noise Filter

The SUPRA Installation/Upgrade Kit enhances the function of your Dual Color SUPRA lights.

It's plug-and-play junction box makes for easy installation and includes the fuses and easy-connect terminals for the lights and the switch.

This kit is required for all underwater TIX/THX models and optional for the SMX53.

Specifications
Number of Lights per Hub
4
Max Number of Hubs per Installation (Surface Mount) 4 Hubs (16 Lights)
Connections SMX - Field Installable Connector (supplied with Hub)
Fuses Replaceable Blade Fuses. Each Light Individually Fused
Status Indication LEDs Yes - for Each Light
Voltage Range 10.5 - 31V DC
Max Input Current 40 A
Max Output Current (i.e., Max Current Per Light) 10 A
Cable Entry / Exit IP68 Connections
Switching Method Built-in Relay
Noise Suppression Built-in Noise Filter
Reverse Polarity Protection Yes
Lumi-Link Compatible Yes
