Hubbell Wiring

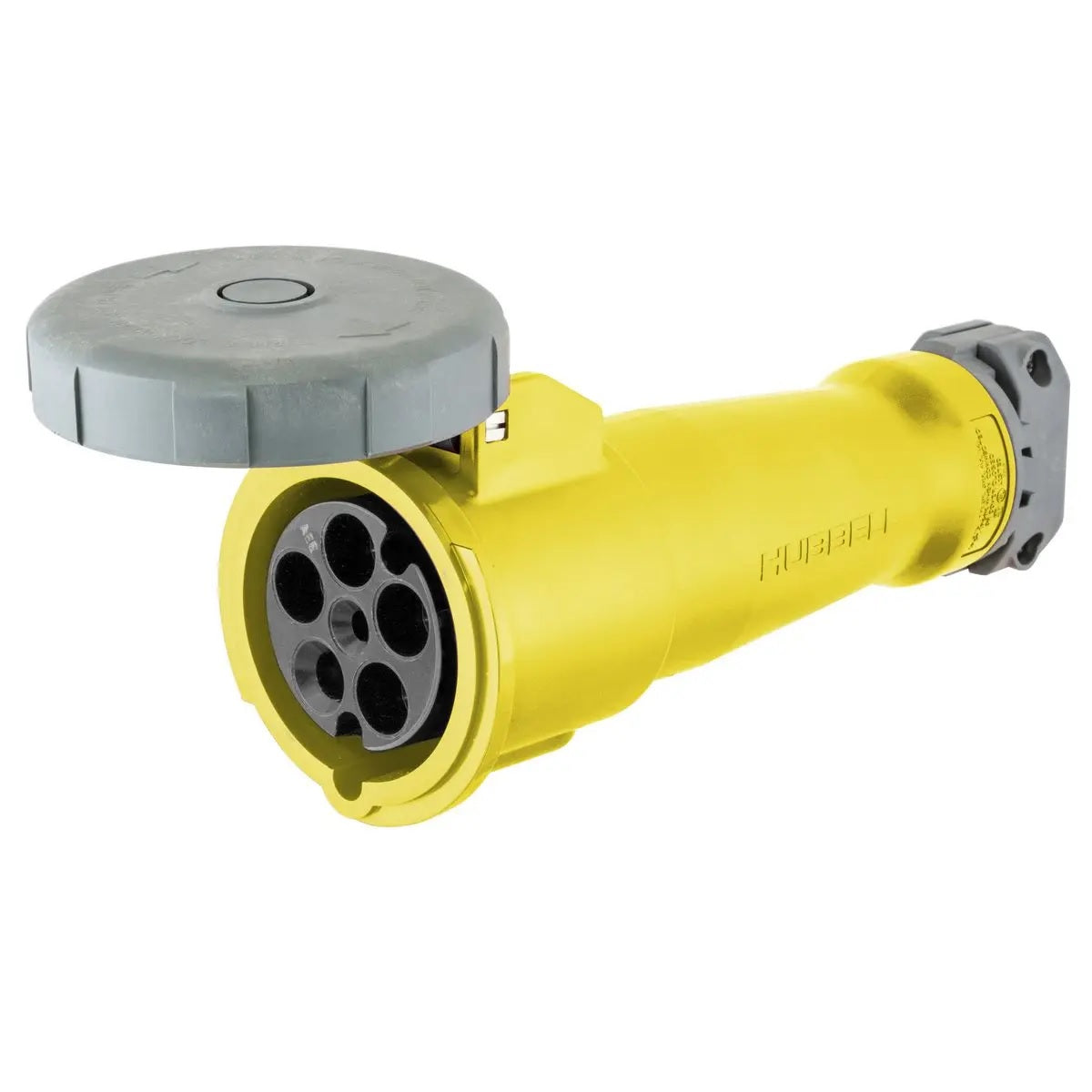

Hubbell M5100C7 100A 480V Female Connector Body
MPN: M5100C7
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$1,896.00
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide
Description
Hubbell M5100C 5-Wire 100 Amp 480 Volt Female Connector Body
Model: M5100C7- Insulated non-metallic housing
- Self-closing gasketed cover
- Color coded housings for easy identification
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow
Specifications| 4 | |
| Temperature Rating | Maximum Continuous: 75 deg C; Minimum Continuous: -40 deg C w/o impact, -25 deg with impact. |
| Amperage Rating | 100 |
| Current Rating | 100 |
| Voltage Rating | Three Phase Y 277 VAC Three Phase Y 480 VAC |
| ConductorRange | #4AWG to #2AWG |
| Number Of Wires | 5 |
| NumberOfConductors | 5-Wire Grounding |
| Mates with | M5100P7 |
