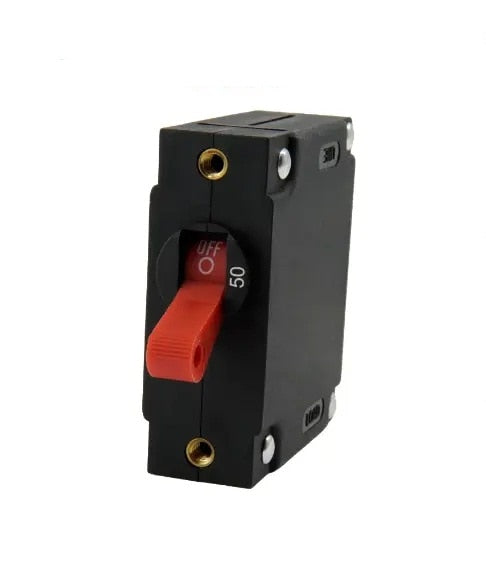

EGIS A Series Red Toggle Panel Mount Circuit Breaker Single Pole AC/DC 50 Amp Retail Pack
MPN: 3221-50
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$19.50
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide
Description
EGIS A Series Red Toggle Panel Mount Circuit Breaker Single Pole AC/DC 50 Amp Retail Pack
Model: 3221-50- AC & DC Rated to cover a wide range of system application needs.
- Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
- Easily Mounts In Standard Panels accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws.
- 4 Year Warranty: We stand behind our product's ability to meet your needs.
Protects Electrical Circuits allows from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
High Interrupt Current to safely protects circuits connected to large paralleled battery banks with significant available power.
Specifications| CONTINUOUS CURRENT (AMPS) | 50 |
| MAX VOLTAGE | 277 Vac / 80 Vdc |
| Regulatory Compliance | UL 1077 |
| Electrical Endurance @ Rated current | 6,000 Cycles |
| Interrupt Capacity | 5kA / 277Vac, 1.5kA / 80 Vdc |
