Bluewater Enterprises

Bluewater Remote Solenoid Battery Switch, Auto Release, 12V

MPN: 9805-7713-0
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$170.00
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide

Description

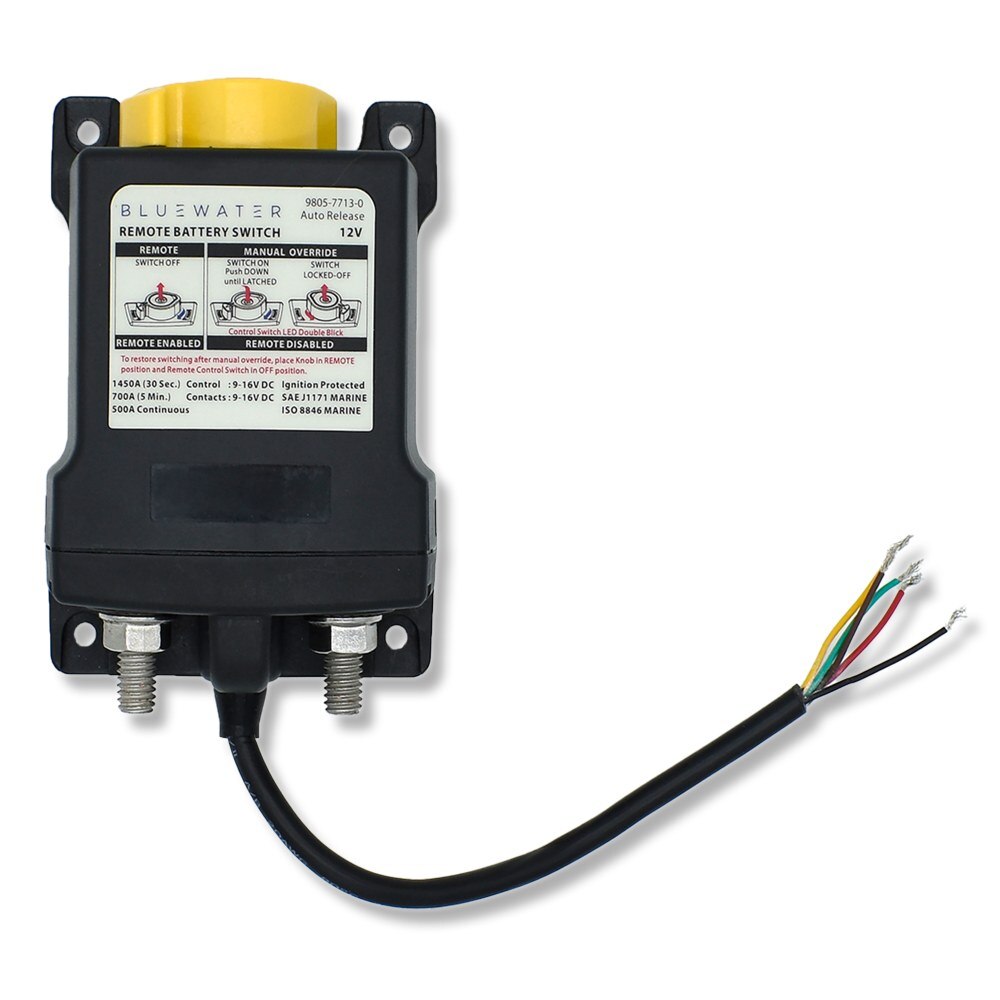

Bluewater Remote Solenoid Battery Switch, Auto Release, 12V

Model: 9805-7713-0
  • Remote Battery Control — Turn battery power on or off from a helm or panel switch, ideal for long cable runs.
  • Low Current Draw — Auto-release design draws very low continuous current.
  • LED Status — Built-in indicators show whether the switch is on or off.
  • Manual Override — Control knob with Lock Off function for emergency access.
  • Heavy-Duty Studs — 3/8"-16 tin-plated copper studs with silver alloy contacts.

The Bluewater auto-release remote solenoid battery switch is a heavy-duty marine solenoid for remote activation of power circuits and battery isolation from a remote panel.

It can be controlled by an SPDT or SPST ON-ON switch, and the manual override provides emergency access.

Specifications
Type Auto-release remote solenoid
Control Voltage 9–16VDC (12V systems)
Current Draw Very low continuous current
Remote Control Switch SPDT or SPST ON-ON
Terminal Studs 3/8"-16 tin-plated copper
Contacts Silver alloy
Status Indicator LED
Manual Override Yes, with Lock Off
