Bluewater Enterprises

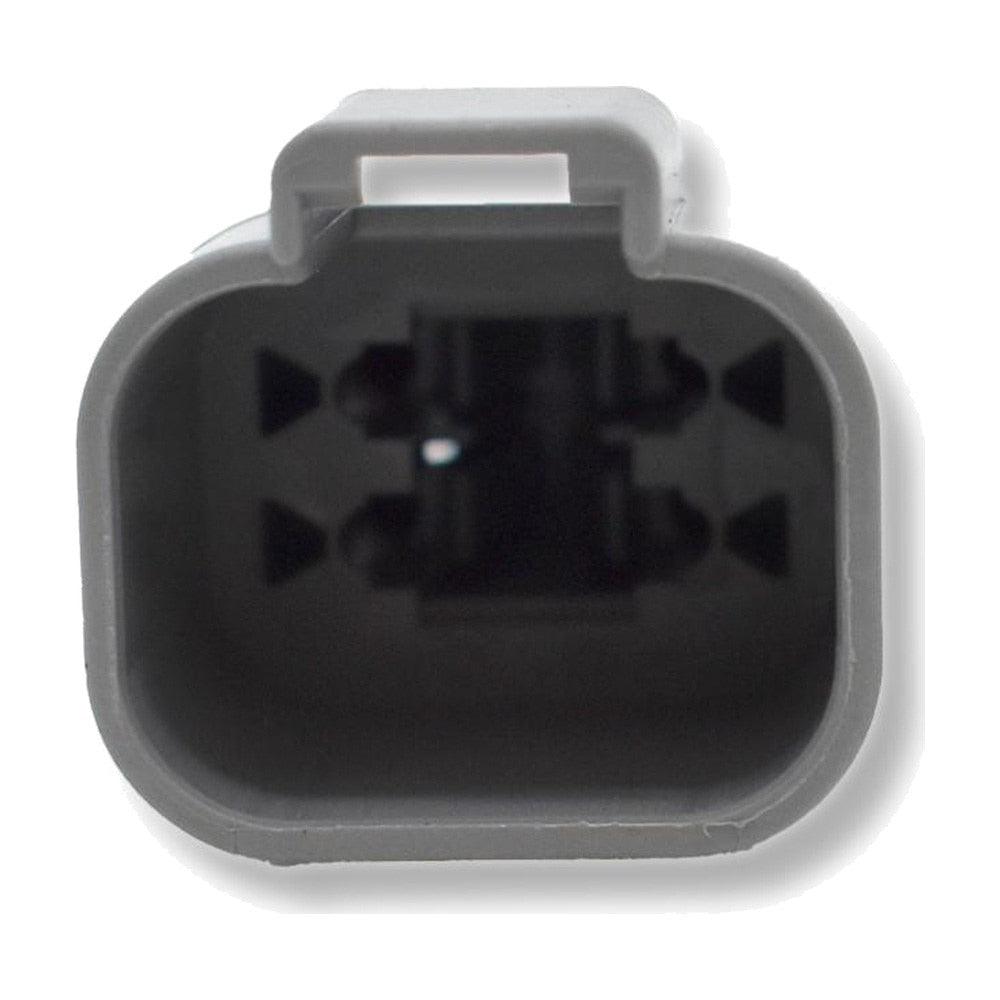

Bluewater 4 Position DT Male Connector with Wedge Lock, Deutsch Compatible

MPN: DT04-4P
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$1.70
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide

Description

Bluewater 4 Position DT Male Connector with Wedge Lock, Deutsch Compatible

Model: DT04-4P
  • 4-Cavity DT Receptacle — Male half of a 4-position DT connection; mates with the DT06-4S female plug.
  • Deutsch Compatible — Fully interchangeable with matching Deutsch DT parts.
  • 13A Per Contact — Delivers up to 13 amps continuously.
  • Wedge Lock Included — Secures terminals in the housing for a positive, vibration-resistant lock.
  • Harsh-Environment Build — Rugged housing, corrosion-resistant contacts and a reliable locking mechanism.

The Bluewater DT04-4P is a 4-position DT series male connector that forms a secure, weather-resistant connection with the matching DT06-4S female connector.

It's ideal for marine, automotive and industrial wiring applications.

Specifications
Series DT (Deutsch compatible)
Positions 4
Gender Male (receptacle)
Mates With DT06-4S
Current Rating 13A continuous per contact
Contacts DT male, 14AWG (solid machined or stamped crimp)
Wedge Lock Included
