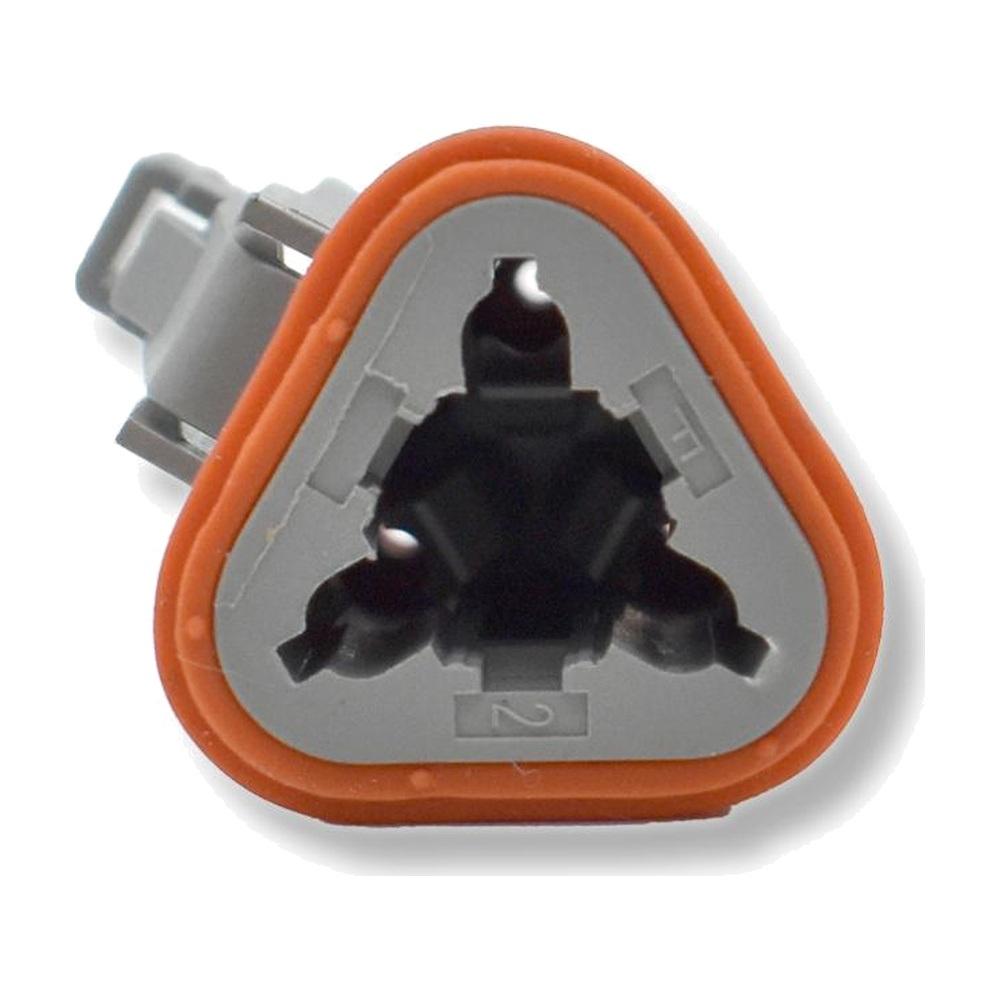

Bluewater 3 Position DT Female Connector with Wedge Lock, Deutsch Compatible

MPN: DT06-3S
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$1.70
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide

Description

Bluewater 3 Position DT Female Connector with Wedge Lock, Deutsch Compatible

Model: DT06-3S
  • 3-Cavity DT Plug — Female half of a 3-position DT connection; mates with the DT04-3P male receptacle.
  • Deutsch Compatible — Fully interchangeable with matching Deutsch DT parts.
  • 13A Per Contact — Delivers up to 13 amps continuously.
  • Wedge Lock Included — Secures terminals in the housing for a positive, vibration-resistant lock.
  • Harsh-Environment Build — Rugged housing, corrosion-resistant contacts and a reliable locking mechanism.

The Bluewater DT06-3S is a 3-position DT series female connector that forms a secure, weather-resistant connection with the matching DT04-3P male connector.

It's ideal for marine, automotive and industrial wiring applications.

Specifications
Series DT (Deutsch compatible)
Positions 3
Gender Female (plug)
Mates With DT04-3P
Current Rating 13A continuous per contact
Contacts DT female, 14–16AWG (machined or stamped and formed crimp)
Wedge Lock Included
