Bluewater Enterprises

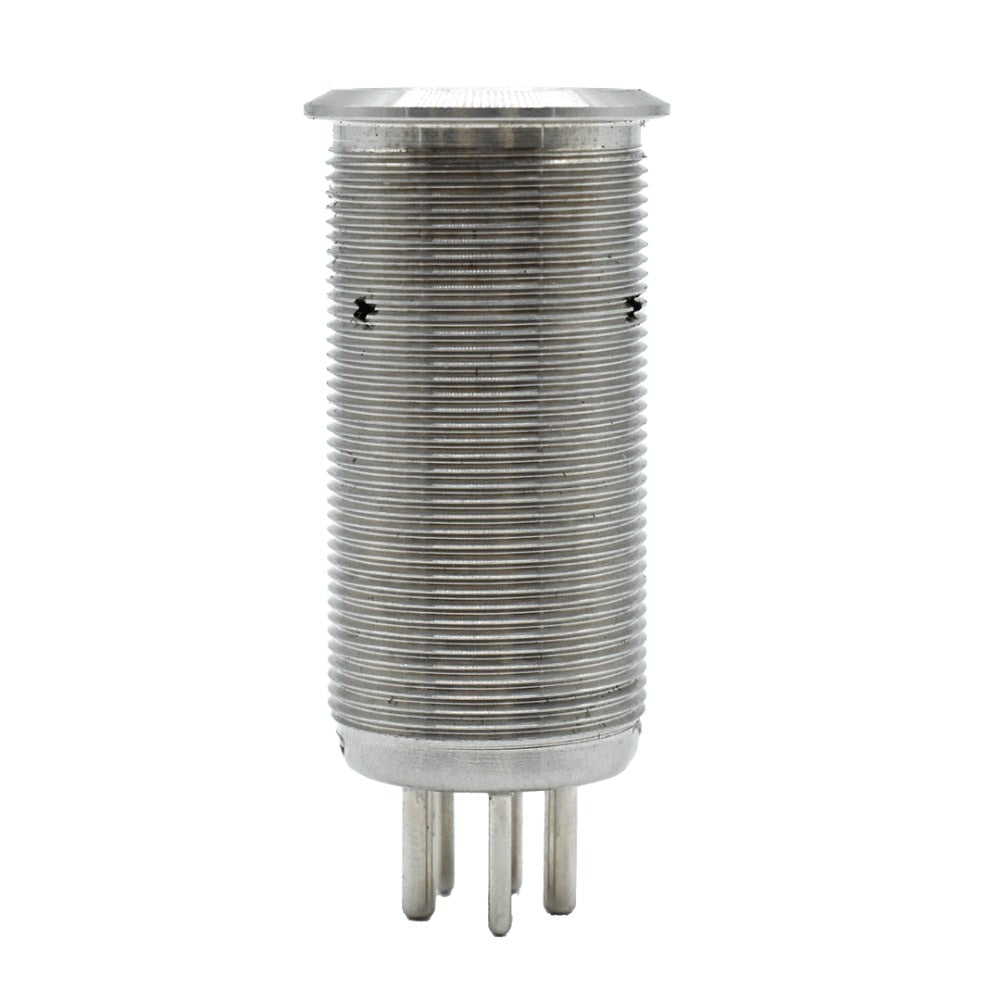

Bluewater 22mm Electronic Inrush Switch, Off/On, Bright Blue/Red LED

MPN: 9059-1113-10
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$55.00
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide

Description

Bluewater 22mm Electronic Inrush Switch, Off/On, Bright Blue/Red LED

Model: 9059-1113-10
  • Latching Off/On — Push once for on, push again for off.
  • Bright LED — Blue backlight for night visibility that shifts to bright red when the circuit is on.
  • Inrush Protection — Handles 120A surges for 120µs, so pumps and motors start without nuisance trips.
  • IP69K Waterproof — Sealed SS316 stainless steel body withstands salt spray, washdowns and submersion.
  • Plug-In Installation — Proprietary Deutsch-style connector for fast, clean wiring and easy switch swaps.

The Bluewater 9059-1113-10 is a 22mm electronic Off/On push button switch with inrush protection and a bright blue/red LED indicator.

The 9059 Series is built for demanding marine loads such as pumps and motors, with salt-spray testing and 20g shock resistance.

Installation: Drill a 22mm mounting hole and plug in a Bluewater 22mm Deutsch-style harness.

Specifications
Function Off-On (latching)
LED Indicators Blue off / Red on (bright)
Voltage/Current 20A @ 12–24VDC
Inrush Rating 120A for 120µs
Protection Rating IP69K
Material Nickel-plated brass / SS316 stainless steel
Mechanical Life 50,000 cycles
Electrical Life 10,000 cycles
Mounting Hole 22mm
Connector Deutsch-style (22mm harness 9053-3914 sold separately)
