Bluewater Enterprises

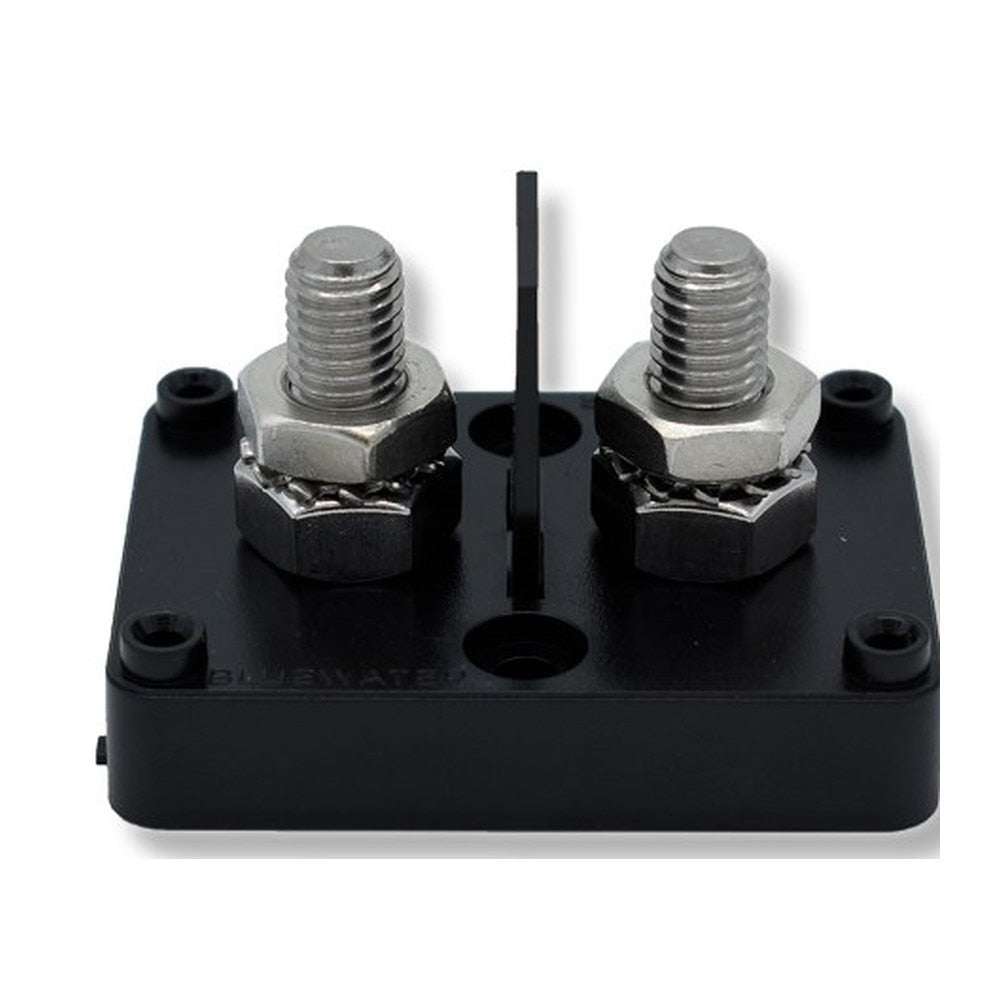

Bluewater 2 Position Dual Stud Busbar 5/16" (8mm), Base Only

MPN: 312311-B-019
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$9.70
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide

Description

Bluewater 2 Position Dual Stud Busbar 5/16" (8mm), Base Only

Model: 312311-B-019
  • Dual Stud Design — Two 5/16" (8mm) studs for high-current cable connections.
  • High Capacity — Rated up to 200A at 48V DC.
  • Low Voltage Drop — High-conductivity design keeps power transfer efficient.
  • Corrosion Resistant — Built for harsh marine and off-road environments.
  • Compact Footprint — Mounts easily in tight spaces with two #10 or 1/4" screws.

This heavy-duty Bluewater dual stud busbar accepts large cable lugs, making it ideal for linking batteries, power inverters and distribution panels.

Its corrosion-resistant construction ensures long-lasting performance, while the compact, high-conductivity design delivers minimal voltage drop for professional-grade power distribution. This part number is the base only; the cover is sold separately.

Installation: Mount with (2) #10 or 1/4" screws.

Specifications
Stud Size 5/16" (8mm)
Positions 2
Max Voltage 48V DC
Max Current 200A
Mounting Holes 0.25"
Mounting Screw Size #10, 1/4"
Distance Between Mounting Holes 1.425"
Cover Not included (sold separately)
