Bluewater Enterprises

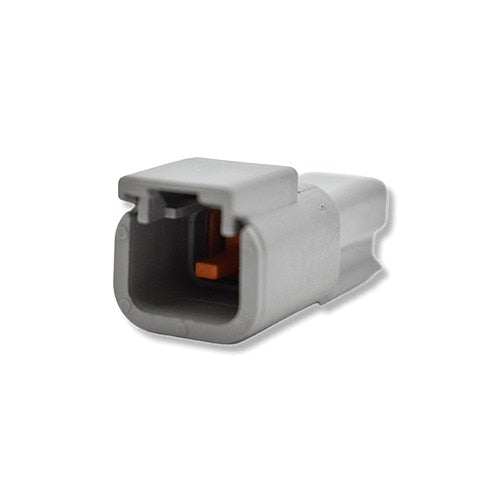

Bluewater 2 Position DTM Male Connector with Wedge Lock, Deutsch Compatible
MPN: DTM04-2P
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$2.20
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide
Description
Bluewater 2 Position DTM Male Connector with Wedge Lock, Deutsch Compatible
Model: DTM04-2P- 2-Cavity DTM Receptacle — Male half of a 2-position DTM connection; mates with the DTM06-2S female plug.
- Compact DTM Size — Miniature DT-style connector for lower-current circuits.
- 7.5A Per Contact — Delivers up to 7.5 amps continuously.
- Deutsch Compatible — Fully interchangeable with matching Deutsch parts.
- Wedge Lock Included — Secures terminals in the housing for a positive, vibration-resistant lock.
- Harsh-Environment Build — Rugged, weather-resistant housing, corrosion-resistant contacts and a reliable locking mechanism.
The Bluewater DTM04-2P is a 2-position DTM series male connector that forms a secure, weather-resistant connection with the matching DTM06-2S female connector.
It's ideal for marine, automotive and industrial wiring applications.
Specifications| Series | DTM (Deutsch compatible) |
| Positions | 2 |
| Gender | Male (receptacle) |
| Mates With | DTM06-2S |
| Current Rating | 7.5A continuous per contact |
| Contacts | Solid DTM male, 16–20AWG machined |
| Wedge Lock | Included |
