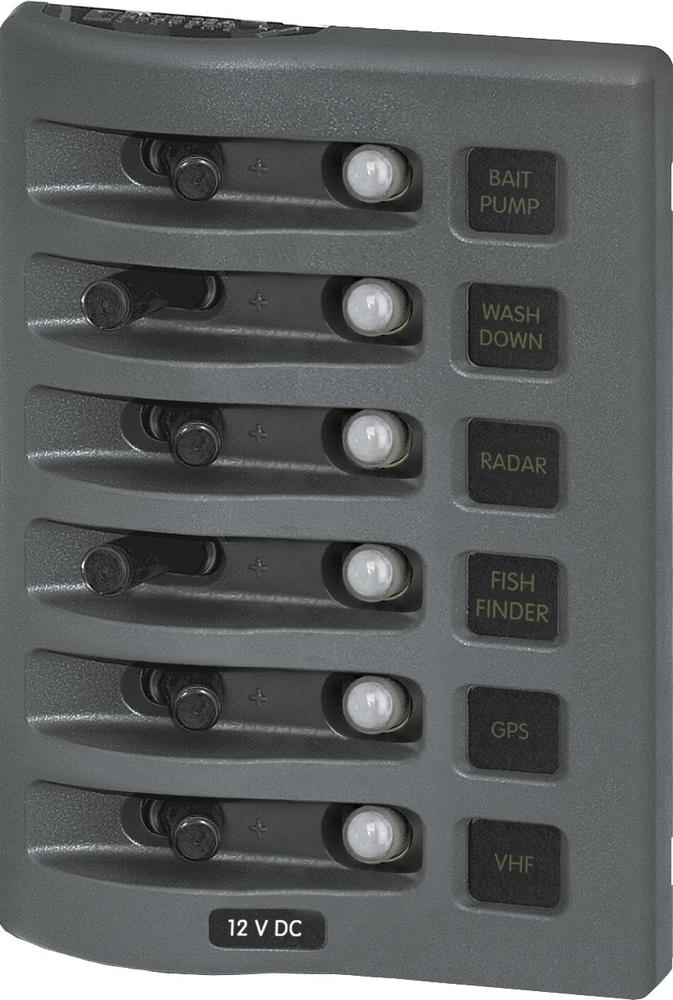

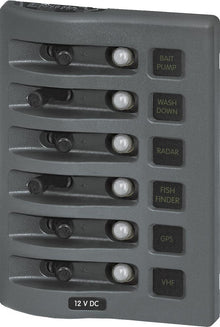

Blue Sea Weather Deck Panel 12v 6 Circuit Breaker Panel

MPN: 4376-BSS

Condition: Brand New

✓

In StockShips Today if Ordered by 2 PM

$181.99

Free UPS GROUND on $100+ orders

30-Day Returns Policy

Authorized Dealer

We Ship Worldwide

Description

Blue Sea Systems Weather Deck 12V DC Waterproof Circuit Breaker Panel - Gray 6 Positions

Model: 4376-BSS

Rated IP67-temporary immersion for 30 minutes
Designed for flybridge and open cockpit applications
Independent label backlighting allows switching and dimming
Compatible with all Blue Sea Systems Digital Dimmers
Each panel can be mounted in four different orientations
Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Specifications
Weatherproof

Waterproof
Positions	6
Nominal Voltage	12V DC 24V DC
Circuit Protection	Circuit Breaker
Maximum Amperage	15A @ 12V DC (per circuit) 9A @ 24V DC (per circuit)
Panel Cumulative Rating	45A
Backlit Label	Green LED
Backlighting Amperage	10mA /Illuminated Circuit
Backlighting Voltage	12 or 24V DC
Material	Reinforced Polycarbonate
Dimensions	6.00 H x 4.25 in W x 3.5"D
