Blue Sea Systems

Blue Sea Short Stop 10 Amp Circuit Breaker Marine Grade

MPN: 7151-BSS
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$13.99
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide

Description

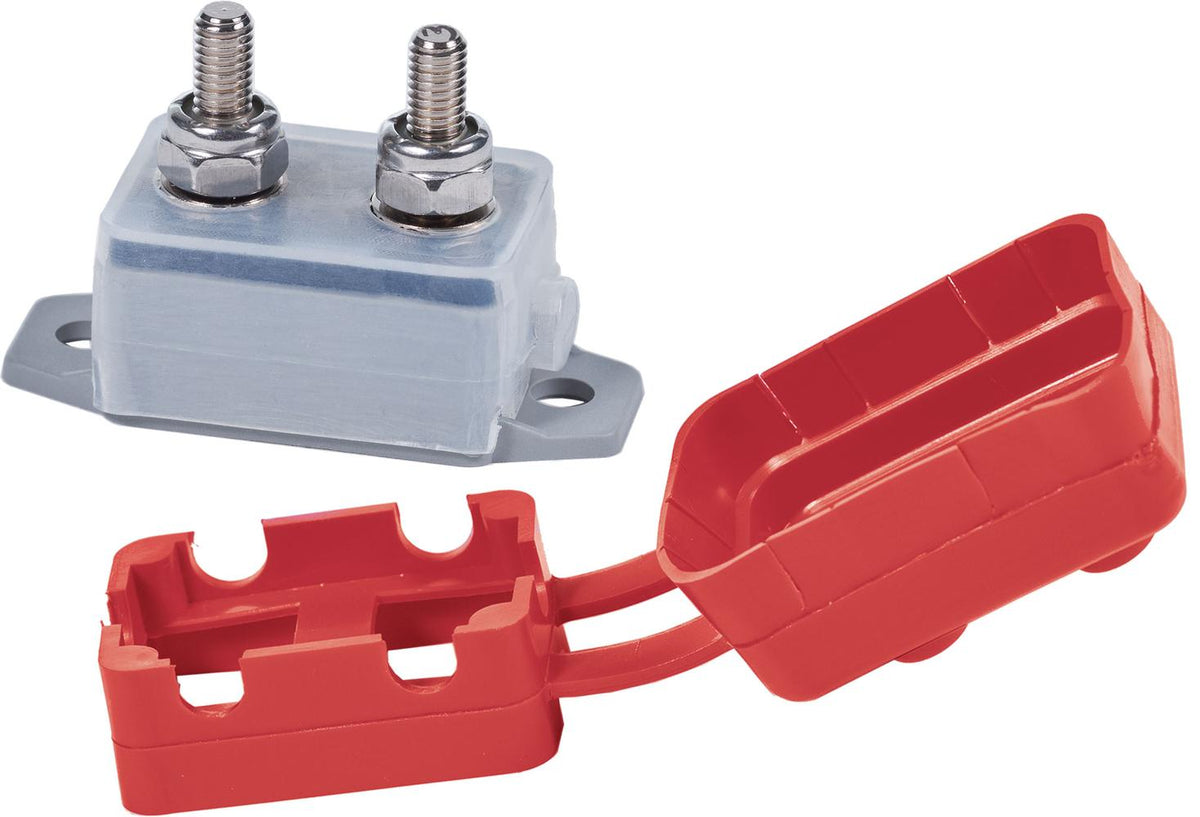

Blue Sea Systems Marine Grade Short Stop Circuit Breakers - 10A

Model: 7151-BSS
  • Corrosion resistant materials to withstand harsh environments
  • IP64 water resistant boot protects against dust and splashing water
  • Push-to-reset operation only disconnects when tripped
  • Stainless steel lock nuts for secure connections
  • Red insulating boot included (retail product only)
Specifications
Amperage
10A DC
Maximum Voltage 28vDC
Circuit Breaker Type Thermal trip, manual reset
Terminal Stud #10-32
Terminal Stud Torque 20 in-lb (2.26 Nm)
Interrupt Capacity 2500A @ 28V DC
Minimum Operating Temperature -10 deg C
Maximum Operating Temperature 60 deg C

What's in the Box:
  • 10A Short Stop Circuit Breaker
  • Short Stop Circuit Breaker Boot
