Blue Sea Systems

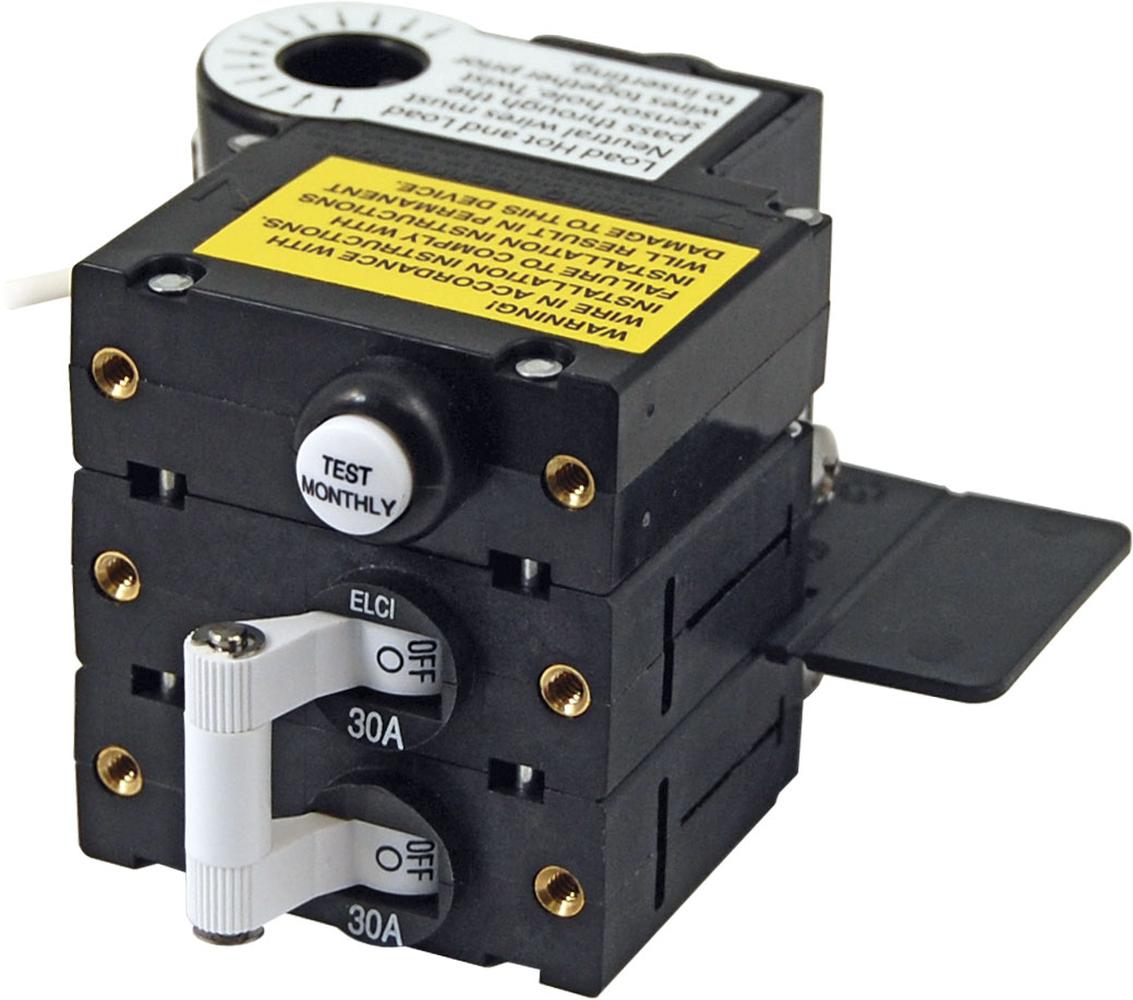

Blue Sea A-Series ELCI 30A 120v AC Double Pole Main Circuit Breaker
MPN: 3106100-BSS
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$544.99
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide
Description
Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
Model: 3106100-BSS- Trips on short circuit, overload, or leakage to ground
- Front panel mount-installed in a power distribution panel
| 30A | |
| Actuator Style | Toggle |
| Poles | 2 |
| Ignition Protected | Yes |
| Maximum Voltage | 240V AC 120V AC per pole |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| nterrupt Capacity | 5000A |
| Minimum Operating Temperature | -35 deg C |
| Maximum Operating Temperature | v |
| Leakage Trip Amps | 30mA |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
