Blue Sea Systems

Blue Sea 5502 Fuse Block ClassT 225-400A

MPN: 5502-BSS
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$68.99
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide

Description

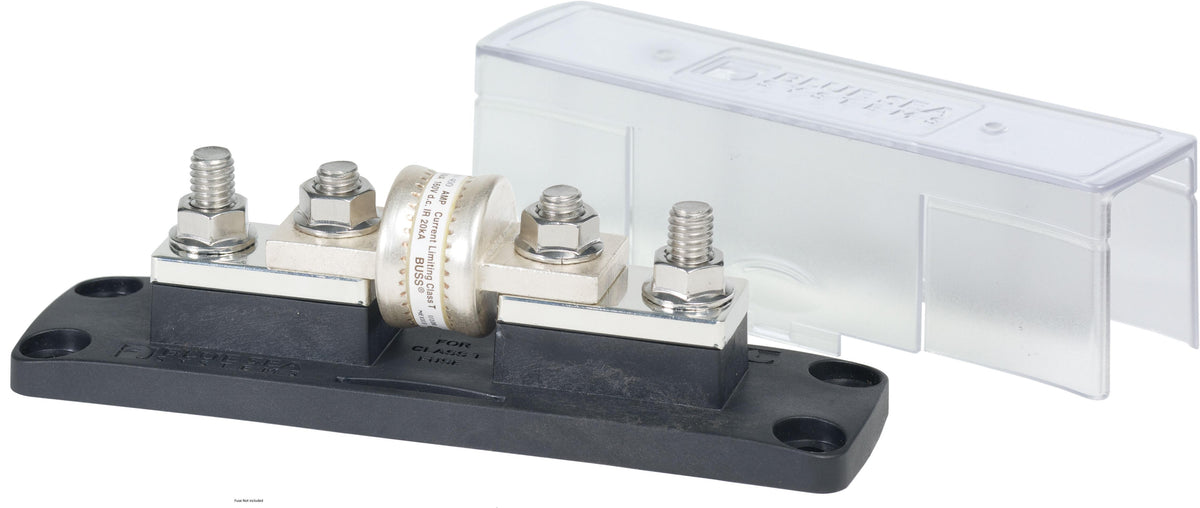

Blue Sea Systems Class T Fuse Block with Insulating Cover - 225 to 400A

Model: 5502-BSS
  • The fuse system recommended by most inverter manufacturers for high speed response to short circuits
  • Clear insulating cover, satisfies ABYC/USCG requirements
  • For use on systems up to 160 Volts DC
  • Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG
  • Large heat dissipating tin-plated copper mounting blocks
  • Fuse sold separately
Specifications
Ignition Protected no
Maximum Amperage 400A
Maximum Voltage 160V DC
Fuse Mounting Blocks Tin-Plated Copper
Maximum Cable Size 4/0 AWG
Maximum Torque 190 in-lb (21.47 Nm)
Mounting Holes Accept 1/4 (M6) Screw
Terminal Stud Size 3/8" - 16 (M10)

What's in the Box:
  • Fuse Holder
  • Insulating Cover
