Blue Sea Systems

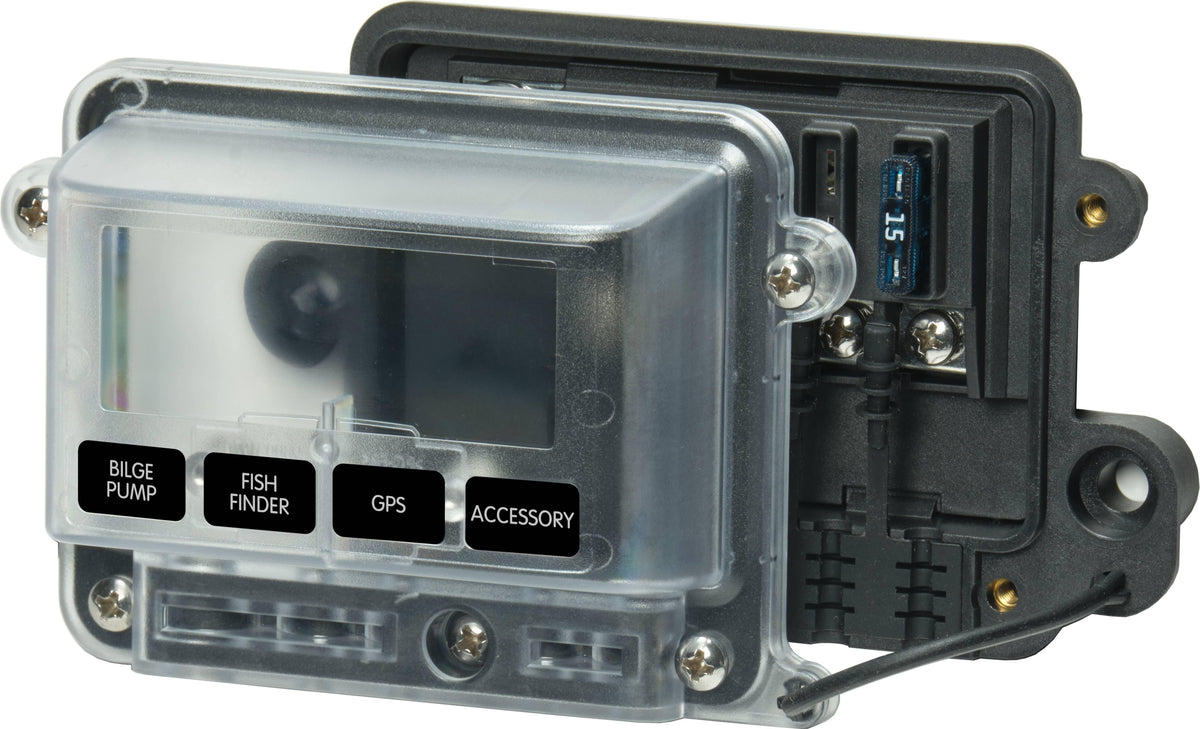

Blue Sea 5056 ST-Blade Water-Resistant Fuse Block 4 Circuit

MPN: 5056-BSS
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$67.99
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide

Description

Blue Sea Systems ST-Blade Water-Resistant Fuse Block
Model: 5056-BSS
  • Water-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools
  • Accepts a wide range of wire sizes
  • Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required
  • Accepts ATO and ATC fast-acting blade fuses
  • Accepts ATO/ATC-Style Low Profile Circuit Breakers
  • Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
  • Tin-plated copper busses and fuse clips
  • Includes four write-on circuit labels
  • Small format standard and custom labels available
  • Spare fuse and fastener storage in cover
  • Fuses and circuit breakers sold separately

Provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint.


Specifications
Amperage 80A per block, 25A per circuit
Maximum Voltage 32V DC
Bus Material Tin-Plated Copper C11000
Mounting Holes Clearance for 1/4 in (6mm) screws
Screw Terminal Type #8-32 Screws with captive star lock washer
Wire Size (1) 8 AWG to 4 AWG - Input, (4) 16 AWG to 10 AWG - Load
Ingress Protection IP66
