Blue Sea Systems

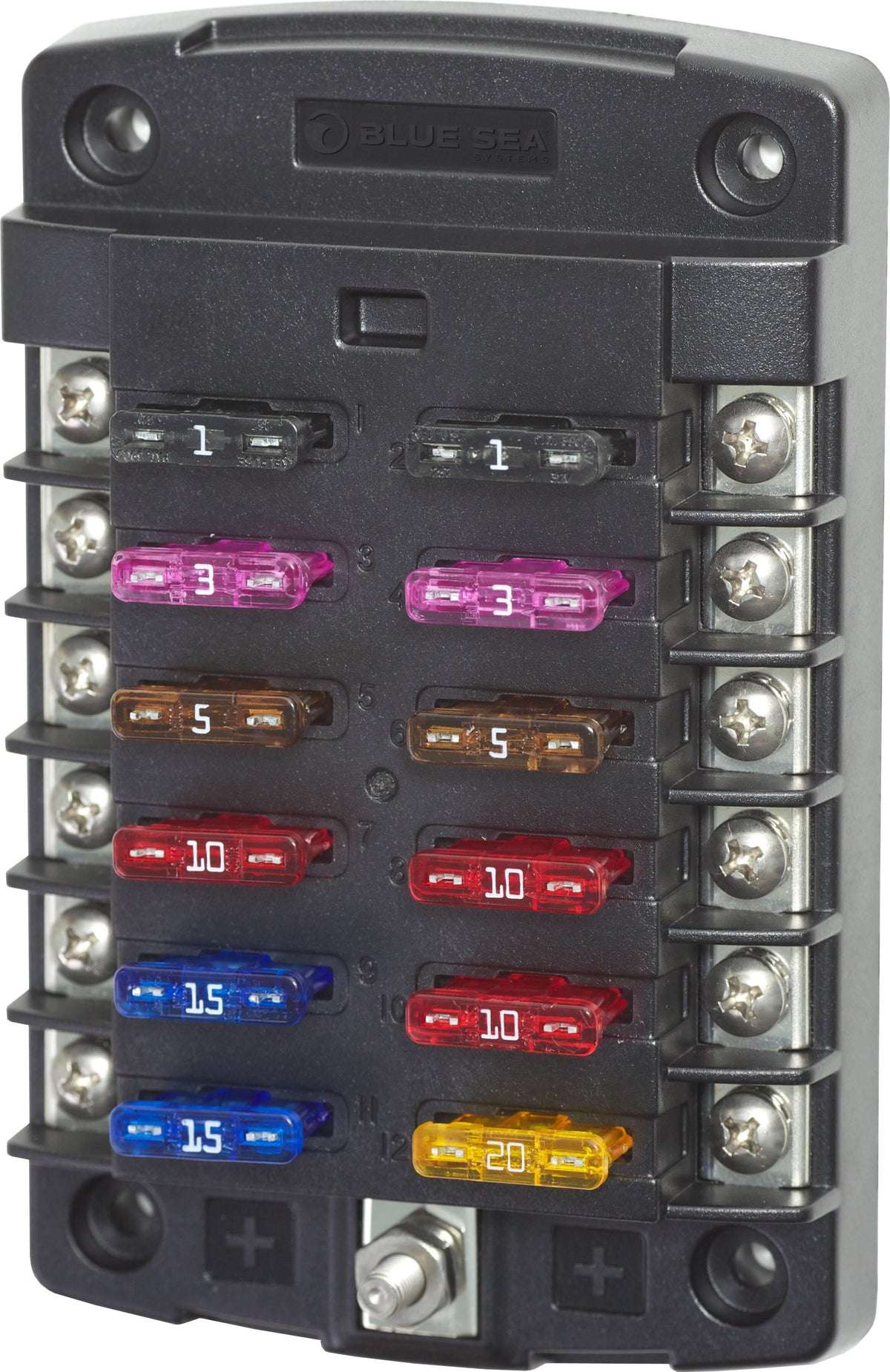

Blue Sea 5034 ST Blade Fuse Block - 12 Circuits
MPN: 5034-BSS
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$76.99
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide
Description
Blue Sea Systems ST Blade Fuse Block - 12 Circuits
Model: 5034-BSS
Specifications
Model: 5034-BSS
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
Consolidates branch circuits and in-line fuses.
Specifications
| Circuits | 12 |
| Maximum Amperage | 100A per block, 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 Nm) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
| Weight | 0.60 lb (0.27 kg) |
