Blue Sea Systems

Blue Sea 5001 MEGA/AMG Fuse Block with Cover 100 to 300 Amp

MPN: 5001-BSS
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$37.99
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide

Description

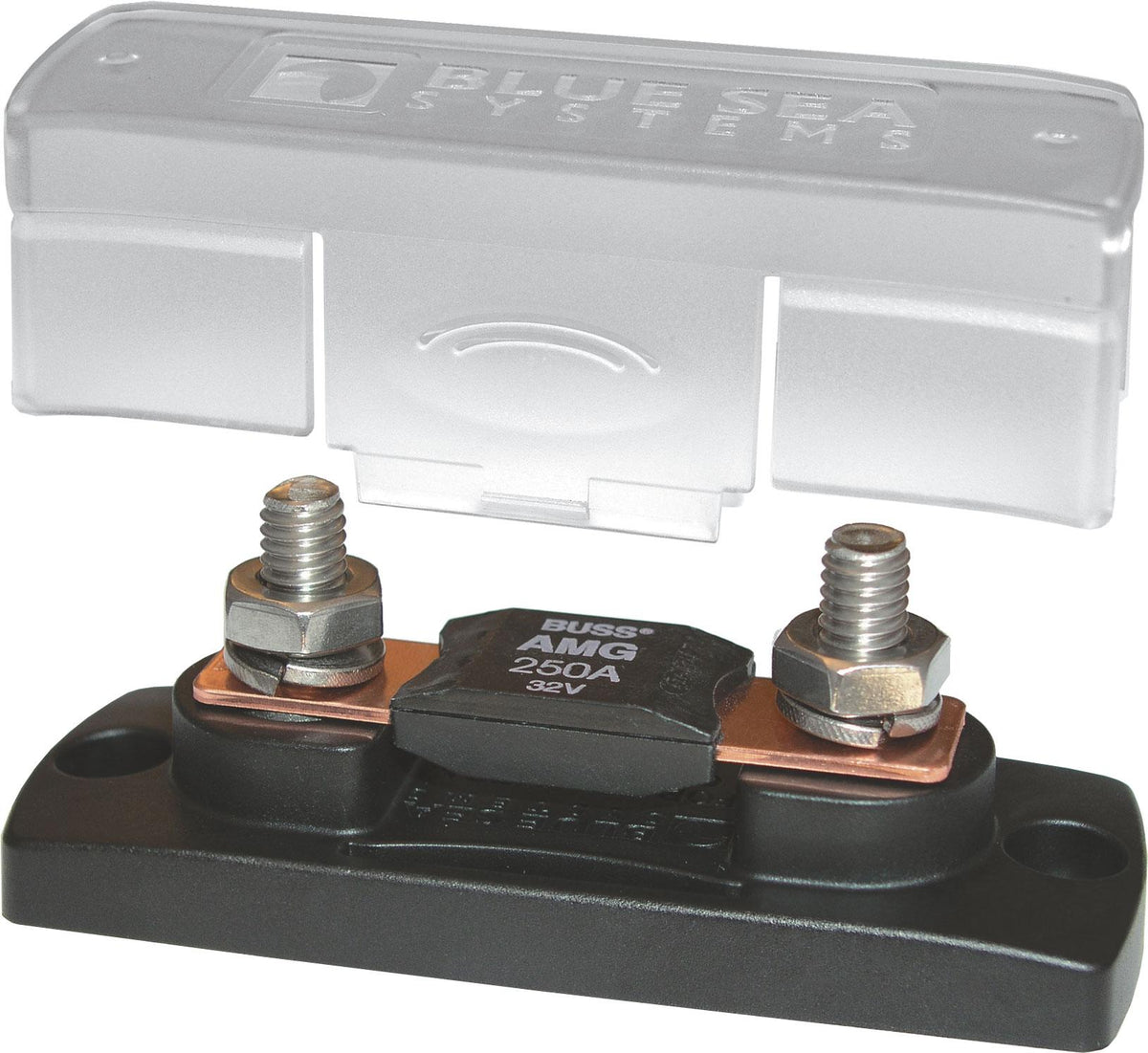

Blue Sea Systems MEGA® / AMG® Fuse Block - 100-300A with Cover
Model: 5001-BSS
  • Accepts 5/16 in (M8) ring terminals
  • Insulating cover satisfies ABYC/USCG insulation requirements
  • Insulating cover breakouts allow wire access in three directions
  • Insert molded studs ensure secure fuse mounting
  • Stainless steel studs provide resistance to corrosion and high torque for excellent electrical contact
  • UL 94-V0 base resists high heat
  • Fuse sold separately

Specifications
Maximum Voltage 32V DC
Stud Size 5/16 in
Base Material Reinforced PBT
Cover Material Polycarbonate
Maximum Terminal Torque 110 in-lb (12.43 Nm)
Stud Torque 120 in-lb (13.56 Nm)
Weight 0.35 lb (0.16 kg)
