Blue Sea Systems

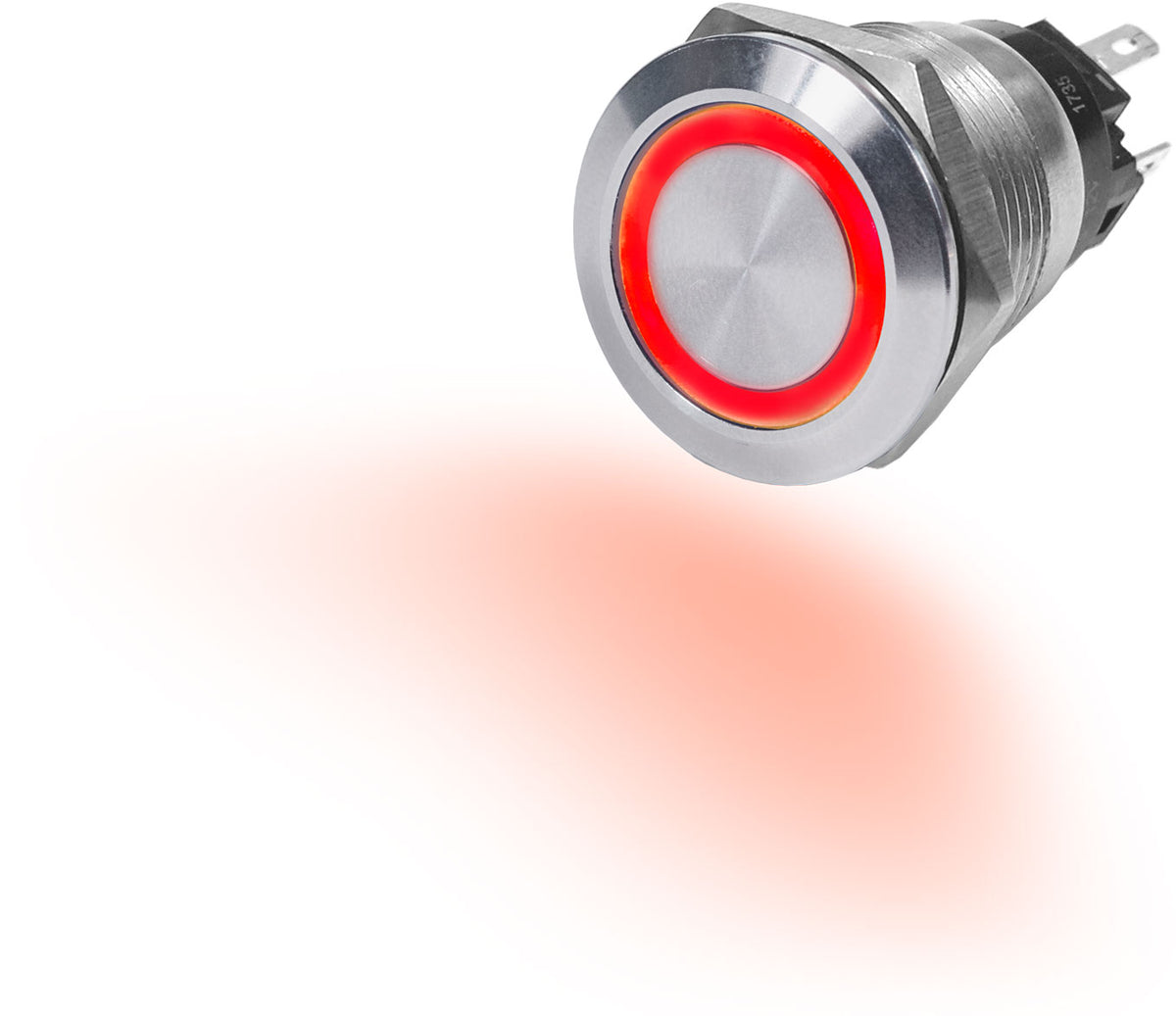

Blue Sea 4162 10A Push Button LED Ring Switch Off-On Red
MPN: 4162-BSS
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$36.99
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide
Description
Blue Sea 10A Push Button LED Ring Switch Off-On Red
Model: 4162-BSS- 10A continuous
- Can be wired for normally open or normally closed
- Installs with .110inch quick connects (included in retail package)
| OFF-ON | |
| Amperage | 10A @ 12V DC Resistive 3A @ 12V Inductive |
| Nominal Voltage | 12V DC |
| Maximum LED Operating Current | 20mA |
| Minimum Operating Temperature | -10 deg C |
| Maximum Operating Temperature | 70 deg C |
| Minimum Storage Temperature | -55 deg C |
| Maximum Storage Temperature | 85 deg C |
| Illumination | Independent - Separate contacts for LED power |
| Max Panel Thickness | 0.31in (7.87 mm) |
| Mounting Hole | 3⁄4 in (19mm) |
| Switching Cycles | 40,000 |
| Termination | 5 - 0.110inch Quick Connect terminals |
