Blue Sea Systems

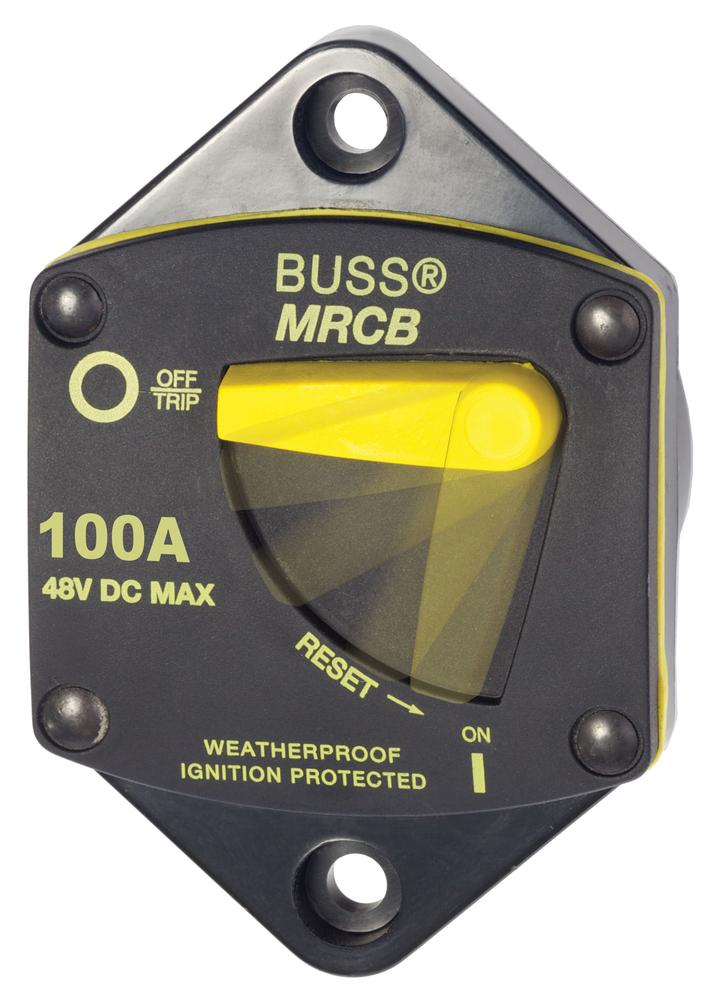

Blue Sea 187-Series 100 Amp Circuit Breaker Panel Mount
MPN: 7044-BSS
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$125.99
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide
Description
Blue Sea Systems 187-Series Circuit Breaker - Panel Mount 100A
Model: 7044-BSS- Combines switching and circuit protection into a single device*
- Clear, single lever operation
- Trip Free" design cannot be held "ON" during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Large Clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 M8 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition protected - Safe for installation aboard gasoline powered boats
* Do not use as a switch where high inrush currents are expected.
Specifications| 100A | |
| Maximum Voltage | 48vDC |
| Mounting | Panel Mount |
| Circuit Breaker Type | Thermally responsive Bi-metal blade |
| Terminal Stud Torque | 75 in-lb (8.47 Nm) |
| Interrupt Capacity | 5000A @ 12V |
