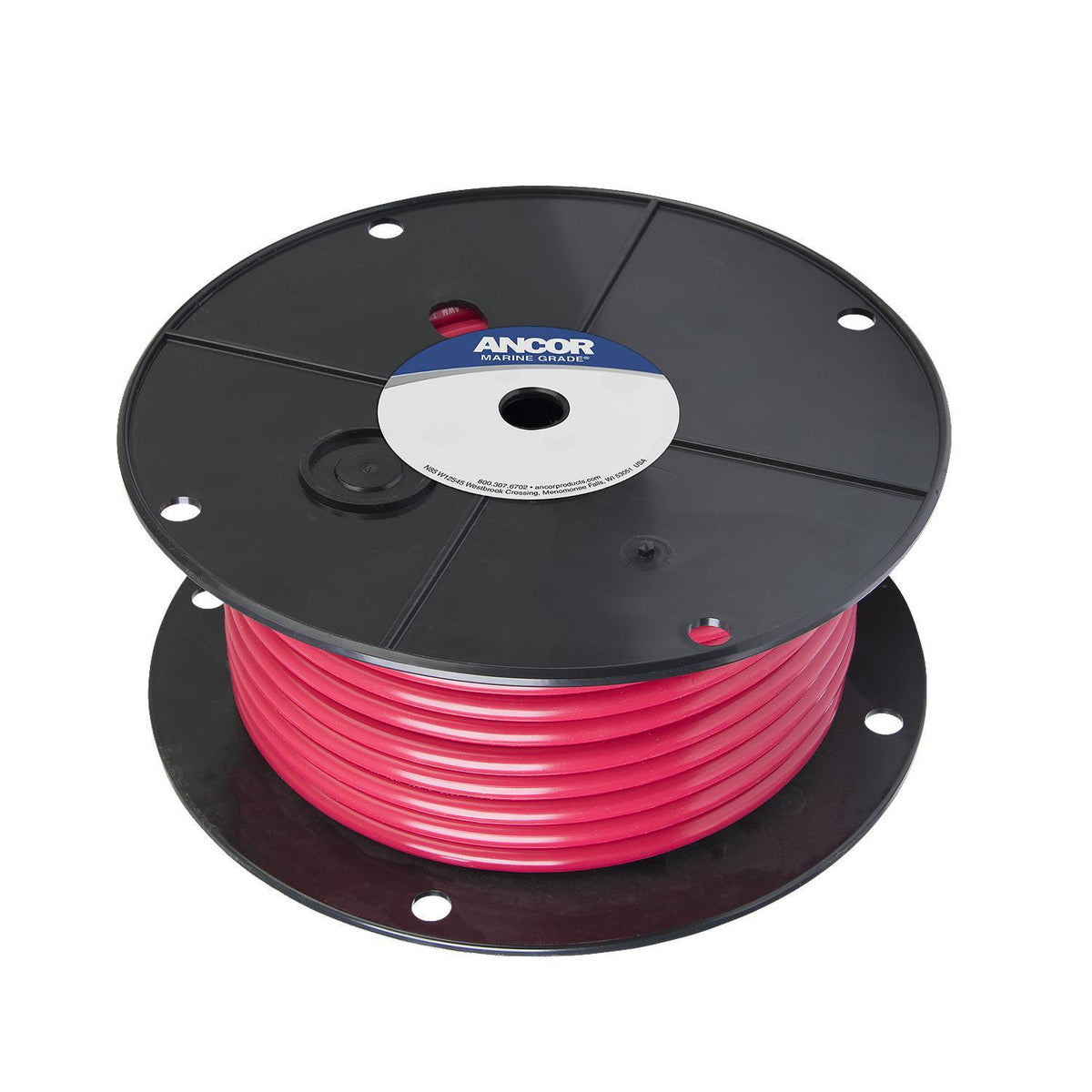

Ancor 4/0 Red 50ft Spool Tinned Copper

MPN: 119505
Condition: Brand New
✓
In StockShips Today if Ordered by 2 PM
$999.20
Free UPS GROUND on $100+ orders
30-Day Returns Policy
Authorized Dealer
We Ship Worldwide

Description

Ancor Tinned Copper Battery Cable, 4/0 AWG (103mm2), Red - 50ft
Model: 119505

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

Specifications
Wire Gauge 4/0 AWG
Color Red
Length 50 ft
Conductor Tinned copper, Type 3 ultra flexible stranding
Stranding 2109 strands of 30 AWG
Nominal O.D. 13/16" (20.6 mm)
Wire Diameter 14.0 mm
Minimum Bend Radius 5-7/8" (15.0 cm)
Circular Mil Area 211,600
Cross-Sectional Area 107.20 mm²
Resistance 0.05 ohms per 1000 ft
Weight per 1000 ft 837 lbs (380 kg)
Voltage Rating 600V
Temperature Rating 221°F / 105°C dry, 167°F / 75°C wet
Cold Flexibility Stays flexible to -40°F / -40°C
Standards Exceeds UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46)
